  • magnumfan
    started a topic 79 Dodge Magnum rebuild

    79 Dodge Magnum rebuild

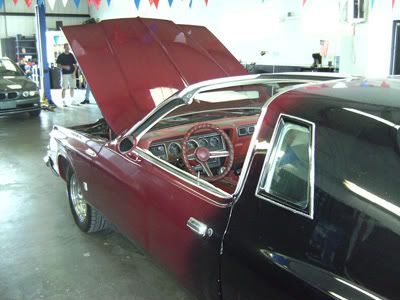

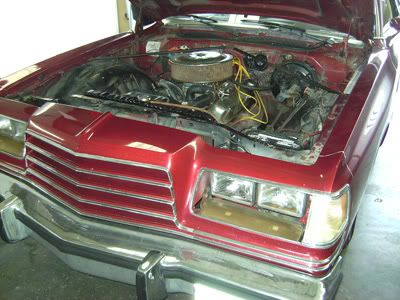

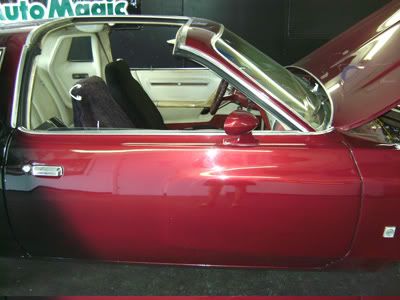

    This is day one of my first restro. I am sure I will mess something up but I am going to try it anyways. I have owned three magnums in my car driving years but this is the first restro. I had this car painted some 20 years ago now and it has held up well. The time has come however to try something new. Today I am just going to pull the motor and interior nothing to important for pictures there. I would expect some hidden damage to surface soon enough.








  • magnumfan
    replied
    Another week down - It appears the water leaks where a little more of an issue. When I had the exhaust put on apparently the muffler shop pull off my headers because they thought they needed to fix or bend the headers a little to avoid the starter on one side and spark plug wires on the other side. They felt I may have done something wrong when I installed them and they needed to fix the problem. In the process they changed the header bolts. The bolts on the back side of the engine ( both sides ) ended up being too long. They busted into the water channel of the cylinder head ( Both sides - back ) . Hence my water leaks. So my joy of finally getting the car started turned into now I need to fix the cylinder heads. Long story short- Out with the old and in with the new compliments of the local muffler shop. Well some of it - the new heads, seals and bolt kit. The rest of it I decided I was tired of messing around with. So with the new - Edelbrock heads part # 60779 , New Edelbrock cam part # 2177 , New Edelbrock performer intake , new MSD coil, distributor, and ignition module. This should cut down on the wires and help with a little more get up and go.

    I would add pictures but for some reason I am unable to add attachments or pictures. Keeps giving me and error that I am not authorized to add attachments. So until that is fixed not pictures.








    Leave a comment:


  • magnumfan
    replied
    Good News - After seven years the car started on the first crank. Sounds awesome!! Bad news - Water leaks everywhere. It sucks but the engine bay has gotten a little dirty and scratched up since it was painted so pulling the motor tomorrow and will put in new gaskets and repaint the motor clean up the engine bay. Question - It took me two days and about 20 hours to figure out the wiring. Is there a wiring harness
    ( aftermarket ) that I can put in? I tried painless performance already - they did not have one. I would like to rip out all the old wiring and re-run all new stuff and eliminate the wiring I do not need since the lean burn was pulled out - any thoughts?

    Leave a comment:


  • magnumfan
    replied
    I will keep you in the loop when I figure it out. I was not as successful as I would like this week getting the car started. I will figure it out this week. I tried a couple of times without luck so I started under the car. I applied some Por15 to the interior cabin area and underbody. I will try again on Monday to get the car started. I messed up the wiring somewhere.

    Leave a comment:


  • Magnumguy
    replied
    Hey, good to see and hear from you!! i wonder every so often how you're doing. Not sure on the hood insulation, I wondered that myself. I have to believe that it's the same material used on earlier B bodies.

    Leave a comment:


  • magnumfan
    replied
    Good Evening- Back at it again. I am going to finish this car if it KILLS me! I have finally given up on certain parts of the car because the body just can't handle the pain any longer - Ha Ha Ha -- Mine that is - The Magnum actually looks great - I am looking for a few items - I can come up with something if I need to but I was curious if anyone out there has already dealt with the same issues. I would like to add the hood insulator back on - Part number 4049601. I would like to replicate the ordinal so if anyone has a line on where I can pick one up that would be great. The other option is I simply have one made and custom print a logo or something on it. I just need to know what material is best to use -I would like black in color not the silver stuff. The other item I am looking for is the door sill or kick plate - part number 3763274-5 with pad 3763255. Again I have the old sills and I can clean them up but I would like something in a little better shape. Anyone ever replaced the door sills - what did you use - where you able to customize the pad?

    I had to repaint the car after more then a year or sitting around- I did not paint it this time around - that honor was to someone that actually knows how to paint. I am hoping to finally get the car started next weekend. I will keep you posted it the thing actually starts. I rebuilt the engine 5 years ago and never turned it over. I may be in for some surprises.


    Leave a comment:


  • magnumfan
    replied
    Small progress but back at it again. I cleaned the car of all the dust - pulled out the bumpers and misc parts and will try to paint all the little items remaining this week. I am missing a battery tray if anyone has one or knows of a parts car that may have one that would be helpful. I am not finding any luck with a replacement at this time. I lined up the fenders this weekend and button the fenders in place. I will run the wires this week and hope to get the car started. I think it would be a good week to get the car started this week but perhaps by next week. The car is not dead in the water just been in hibernation. Thank you for the continuous interest. My hope is to wrap this project up by the end of summer. No new pictures this week yet but I will have something after painting the bumpers.

    Leave a comment:


  • dobalicious
    replied
    Has there been any progress?

    Leave a comment:


  • magnumfan
    replied
    Hello Everyone - No the car is not done but I am starting back up. I am in decent shape to work on the car right now so with small steps I will start again. The car is actually just about done believe it or not. I need to adjust the front fenders a bit, than run the wires for everything. It took a while to go through the wiring harness as that thing was a mess with the lean burn and all the fixes I have made along the way - I have basically cut out all the un-needed runs. I am going to add a small fuse block I found in the junk yard ( see attached ) and place it along the firewall. This will clean up all the fuse-able links and the crap that is a wiring harness. I will let you know how the fenders go as my plan is to work on those this weeked.
    [IMG][/IMG]

    [IMG][/IMG]

    Leave a comment:


  • nonstick
    replied
    any more updates? More pics? More updates with more pics?

    What can I say, you do really nice work. We wanna see more.

    Leave a comment:


  • dodgeboy1969
    replied
    Originally posted by magnumfan View Post
    If you hate body work as much as I do than soda blast or sandblast as much as you can. It saves a ton of time !!
    I take it to a local body shop, Have had the same guy do all the work since I had it repainted when I was 19. (I'm in my 40's now). Most people have dentists or doctors that they go to to for life, I have a bodyman. I just write a check, that saves alot of headaches. You know the old saying, "Why pay to have it done right when you can F it up yourself for free?"!

    Leave a comment:


  • magnumfan
    replied
    If you hate body work as much as I do than soda blast or sandblast as much as you can. It saves a ton of time !!

    Leave a comment:


  • dodgeboy1969
    replied
    want to do my '75 next? lol i hate bodywork.

    Leave a comment:


  • magnumfan
    replied
    My IMP - Thank you for the info - I have already soda blasted the car so we will have to see how the paints does against the metal. The car has been painted for quite some time now and I don't see any issues at this point. After the car was soda blasted I did wash the car down with a vinegar and water mix than used Hold Tight and washed it again. I washed it another two times before I even put my first layer of primer on. My biggest concern was the nooks and crannys but I spent extra time making sure the soda dust was removed from those areas as well. The undercarriage and the structural parts of the car were sandblasted. I would say the paint has been on the car now for about a year and nothing so hopefully I was able to get everything. I do appreciate the tips and I am hopeful to finish this car before too much longer. I have never tried the Kroil so if I can find it in my area I am going to give it a shot. Thanks again

    Leave a comment:


  • My Imp
    replied
    A couple of tips to (hopefully) aid your project. There is a penetrating oil made by Cano called "Kroil, the oil that creeps". In over 30 yrs. I have never found a penetrant that works better! It is however, some foul smelling..... But if you want something to break loose, this is the product to buy. It makes P.B. Blaster look like Kool Aid! Another tip ; don't use soda. Soda s a base, etching primer is an acid. The two are not compatible. Most or all major paint companies won't even talk to you about an adhesion problem if they know the car was soda blasted. Hope this helps you & keep up the good work. One question, do you plan on fixing those troublesome headlight covers? lol good luck, Larry
